Electrical Connections

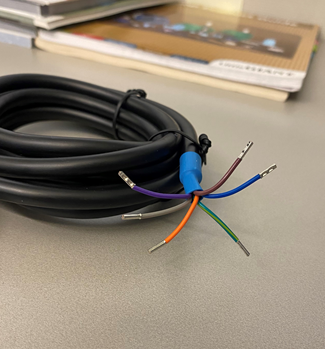

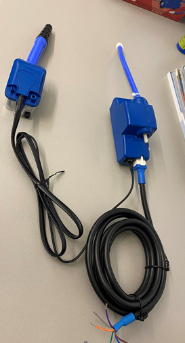

  • Here is a picture of the whole assembly as a part and a close-up picture with the wires being separated:

 

A blue and black electrical wires Description automatically generated with medium confidence A black wire with blue and orange wires Description automatically generated

  • The wires that are on the left are the gray, purple, and orange wires. Refer to page 9 (Electrical Connections) in the manual for wiring instructions.

A table with blue and white text Description automatically generated

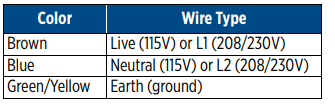

  • The other 3 wires on the right are brown, blue, and green/yellow. Refer to page 8 (Electrical Connections) in the manual.  

A blue and white rectangular box with text Description automatically generated

The pump is very loud, is this normal?

  • It should be at 21 decibels.  

  • Ensure there are no blockages in the tank or within the screen. 

  • Verify there are no kinks in the line.  

  • Check that it is getting the proper voltage. 

Is there any pump/receiver that can be used to transfer the condensate if the pumping distance is exceeded for EC-1K-DV?

  • Please switch to the VCL-45 Condensate.

Are there fittings available to connect the hoses together?

  • There are fittings available, but they are to connect the hoses to the pump, not to each other.

Do you have a hose sizing chart?
