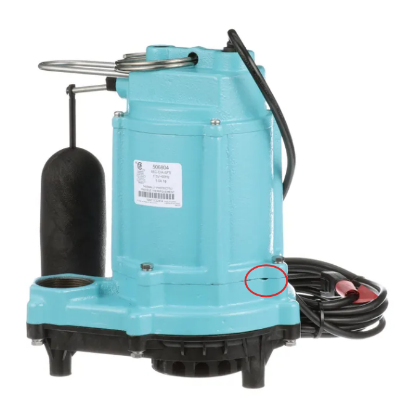

Water leaks from the side of the pump, is this normal?
-
Yes, this is an air bleed hole to help prevent the pump from getting air lock.
What oil goes inside the pump?
-
Dielectric oil.
-
20.00 Oz
What is the HP?
- 1/3 HP

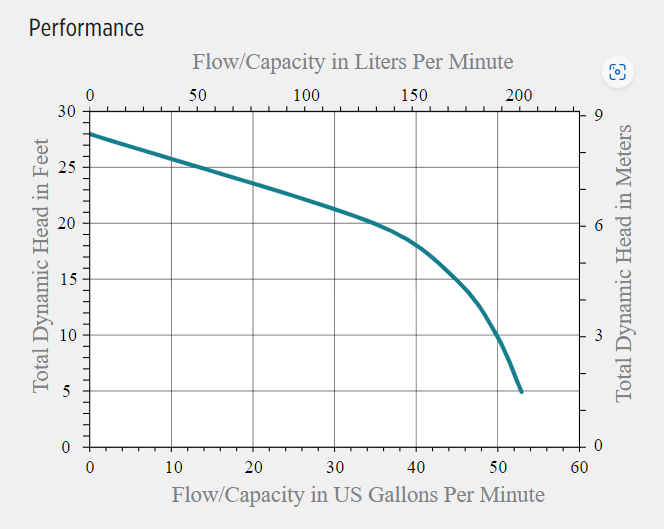

How High can it pump?
Why does the float switch go all the way up, but the pump does not turn on?
-
Ensure there is nothing blocking the float from going all the way up.
-
The float assembly needs to be replaced, because it is not pushing the pump to the on position.
Do I need to drill a separate air bleed hole since the pump already has one?
- If one air bleed hole gets clogged, then yes, drill another hole.
Why does the pump hum, but the impeller does not spin?
-
The pump could be clogged.
-
The motor or the capacitor could be going bad.
-
-
If so, replace the pump.
-
The pump turns on and the impeller spins, but it does not discharge water.
-
The pump is air locked.
-
There is blockage in the discharge line.
-
The check valve could be installed in the wrong direction or not opening.
-
Head/vertical pumping height is too high for the pump.
-
For more information, review the troubleshooting section of the owner’s manual.
The switch activates, but the pump does not turn on.
-
Ensure proper voltage supply.
-
Ensure the ground fault has not tripped.
